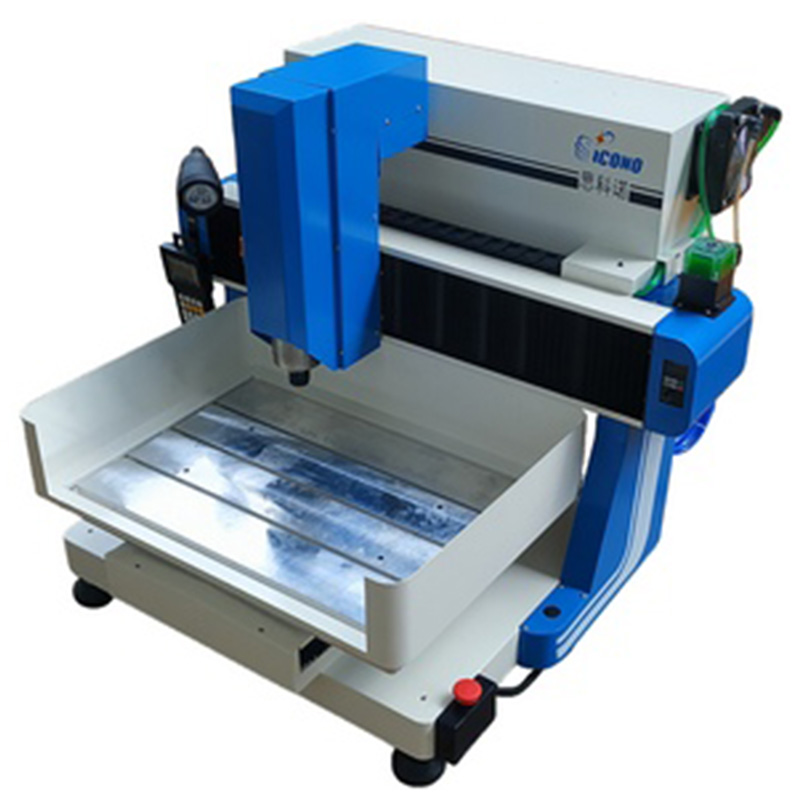

MINI CNC Engraving Machine

SIC-6040

Product description: SIC-6040 Performance features: The machine adopts double column gantry structure, integral casting, linear guide rail, good rigidity; it adopts imported ball screw, high-speed CNC control system
INQUIRY

Technical Parameters
model	SPD-6040	Spindle speed	8000-24000RPM
X,Y stroke	600mm*400mm	Spindle power	1.5KW or 2.2KW frequency conversion water-cooled spindle motor
Z stroke	95	Tool diameter	12
Workpiece width/height	630*100	Instruction format	NC-Code.G-code
Step	0.0125	Drive System
Knife speed	0-7000mm/m	Control System	DSP
power supply	AC220	Interface method	COM
