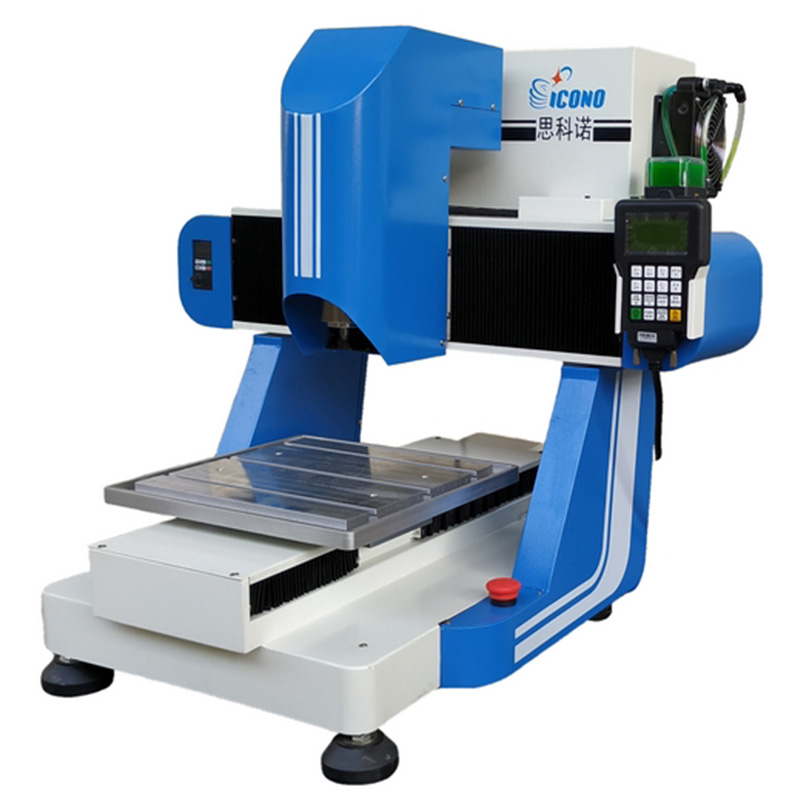

Spd-400 Mini engraving machine

Product description: Spd-400 Mini engraving machine Performance features: This machine is a mini engraving machine, which can be widely used in metal grinding, metal grinding, chamfering, plastic processing and mold
INQUIRY

Technical Parameters
model	SPD-400	Spindle speed	6000-24000RPM
X,Y stroke	380mm*380mm	Spindle power	0.8KW or 1.5KW frequency conversion water-cooled spindle motor
Z stroke	90mm	Tool diameter	￠3.175mm, ￠4mm,￠6mm
Workpiece width/height	380X100 mm	Instruction format	NC-Code.G-code
Step	0.0125mm	Drive System	32-bit high-performance micro-segment Lexai driver
Knife speed	0-7000mm/m	Control System	DSP control system
power supply	AC220V, 50Hz-60Hz	Interface method	COM

PREVIOUS：Spd-330g small drilling and tapping machine NEXT：Sg500 glass carving machine
